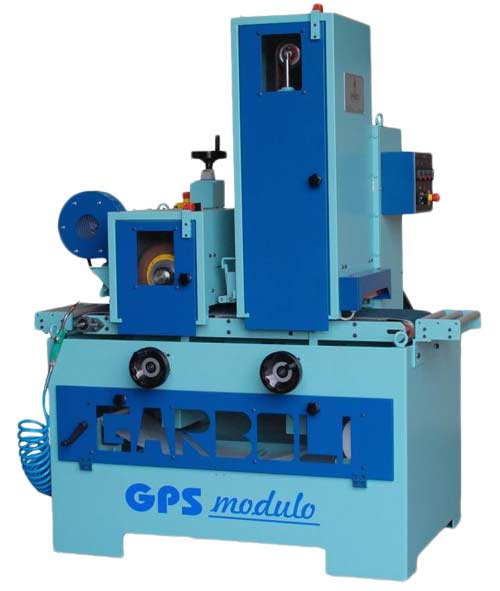

Garboli GPS

Belt grinding machine for FLAT SURFACES with WET working system suitable for finishing operations on pipes and bars with square and rectangular sections, sheets and plates made of stainless steel, iron, aluminium, brass and other metals.
Particularly suitable for DEBURRING on laser/plasma cut or sheared sheets.

Machine is available in two different versions: one version equipped with “ABRASIVE BELT” and one version equipped with “BRUSH” for satin finishing on aluminium parts..

Machine suitable for satin and finishing operations on pipes and bars with square and rectangular section as well as sheets and plates made of stainless steel, iron, aluminium, brass and other metals.
Particularly suitable for DEBURRING on laser/plasma cut or shared sheets. The machine can be supplied in 4 DIFFERENT VERSIONS:
– Standard version with n°2 modules “A”
– Version with n°1 module “A” + n°1 module “B”
– Version with n°3 modules “A”
– Version with n°2 modules “A” and n°1 module “B”

Working process is “WET”: cooling mixture is sprayed on the workpiece under process and convoyed to a filtering device to clean the liquid from residuals before further recirculation.
ON REQUEST this machine can be supplied with:
– Equipment for “DRY” processing
– Double rotation speed of the abrasive belt
– Brush head speed adjustable with inverter equipment (module “B” )
– Air blower for drying up workpieces
– Front and rear holdering table with n°3 rollers
– Front/rear table rollers (3 mt. length module) to hold workpieces both in entrance and exit from the machine
– Electro-mechanical prearrangements for third module

GET A QUOTE

FEATURES:

  • Grinding Width up to 300mm
  • Micrometric reading of the working height.
  • Double set of front and rear pinch rollers to avoid work-pieces edges chamfering.
  • Adjustable feed speed from 1 to 10 mt./min.
  • Grinding belt pneumatic tensioning
  • Watersprout for machine cleaning and maintenance.

Accessories:

  • Dust collection hood for “dry” working process (on request).
  • Air blower system.
  • Roller table, 3 mt. module
  • Double cutting speed of the abrasive belt 8-16 mt./sec.
  • Front and rear roller.
