Guilliet TDN Auto Tenoner

Guilliet TDN Auto Tenoner

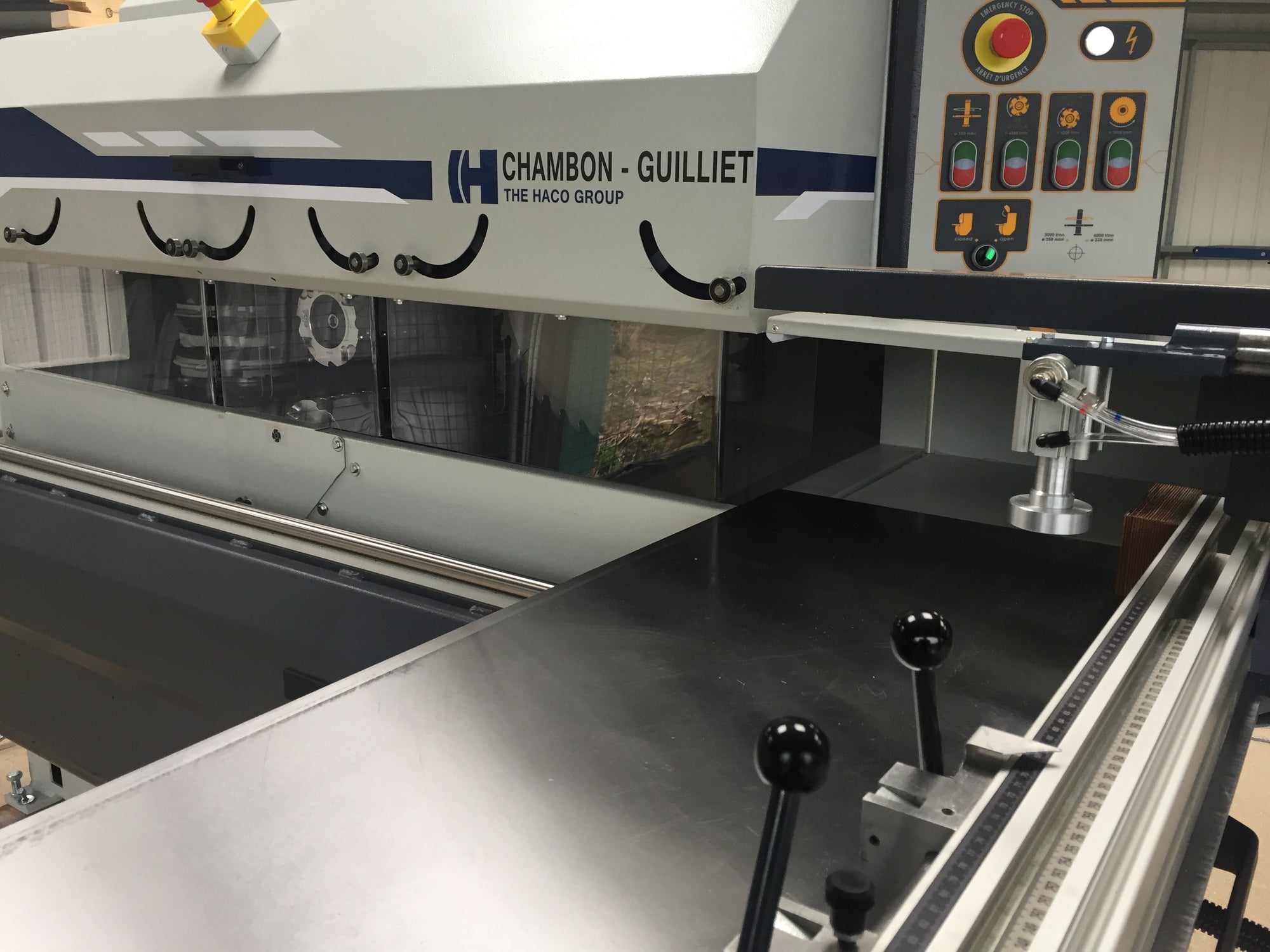

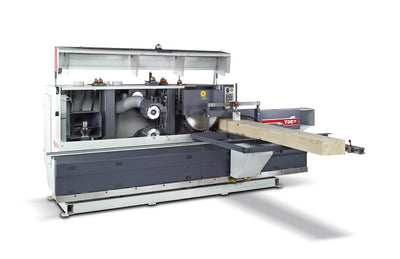

Machine with strong structure and compact dimensions. Qualities in all the right areas, simple and user friendly. Precision and easy access to the adjustments with display on 6 mechanical digital counters. Plexiglass protection releasing one tool at a time. Adjustable table of 900 x 500 mm sliding upon ball bearing shaft and guided on treated and rectified steel bar. Table equipped with aluminium telescopic fence of 2500 mm tilting from -45° to 45° with double end stop.

Configuration – TDN04, TDN05

‘For use with window systems with repetitive positions – no set up time, increased quality, faster production’

GET A QUOTE

FEATURES:

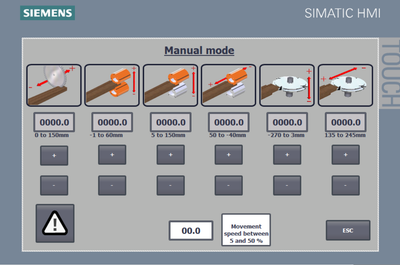

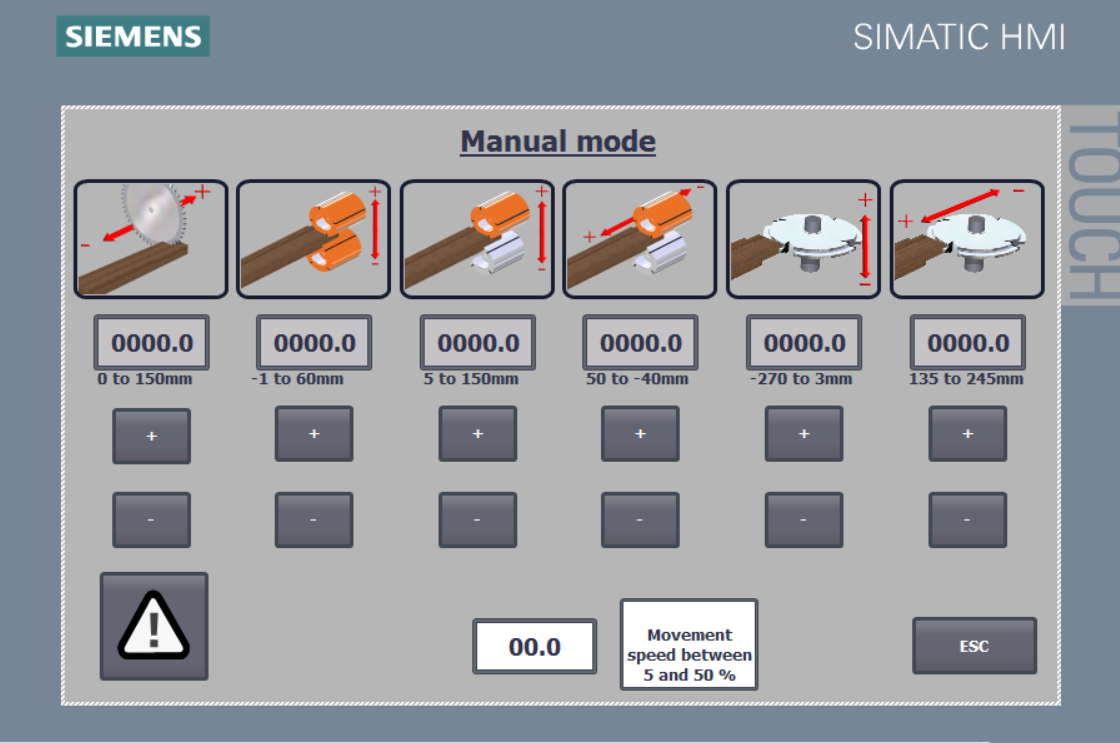

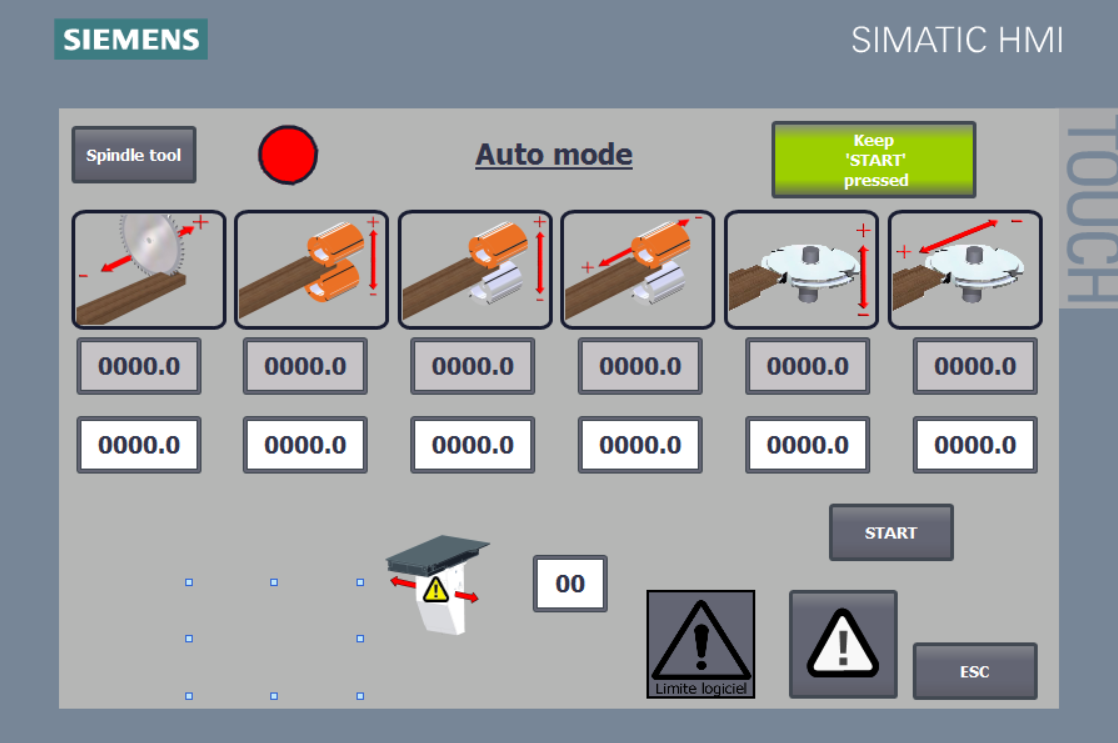

  • Touchscreen CNC control of all axes – fully programmable
  • Motorized table variable with quick return (opti0n)

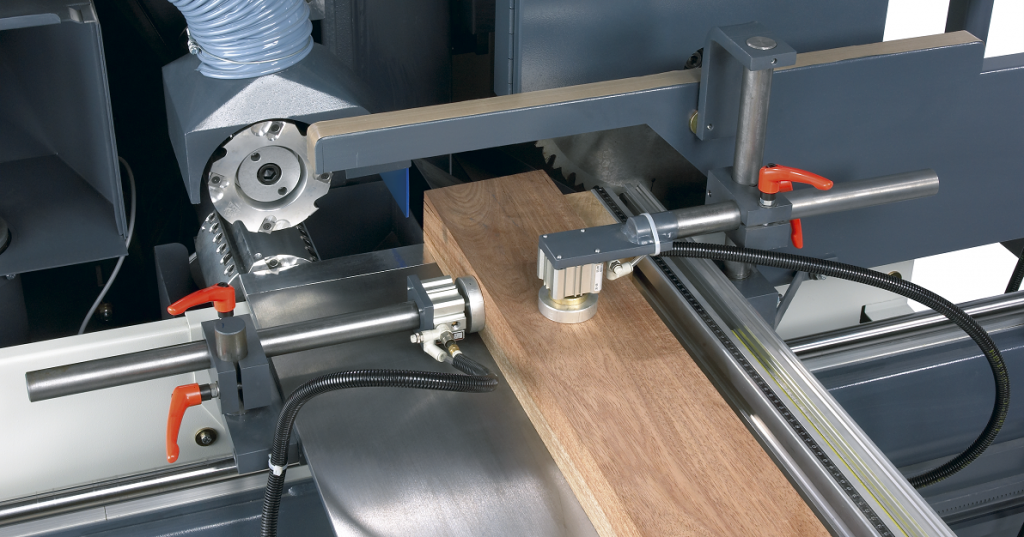

  • Pnuematic clamping
  • Common in TDN 05 & TDN 04 formats
  • Top & bottom tenon

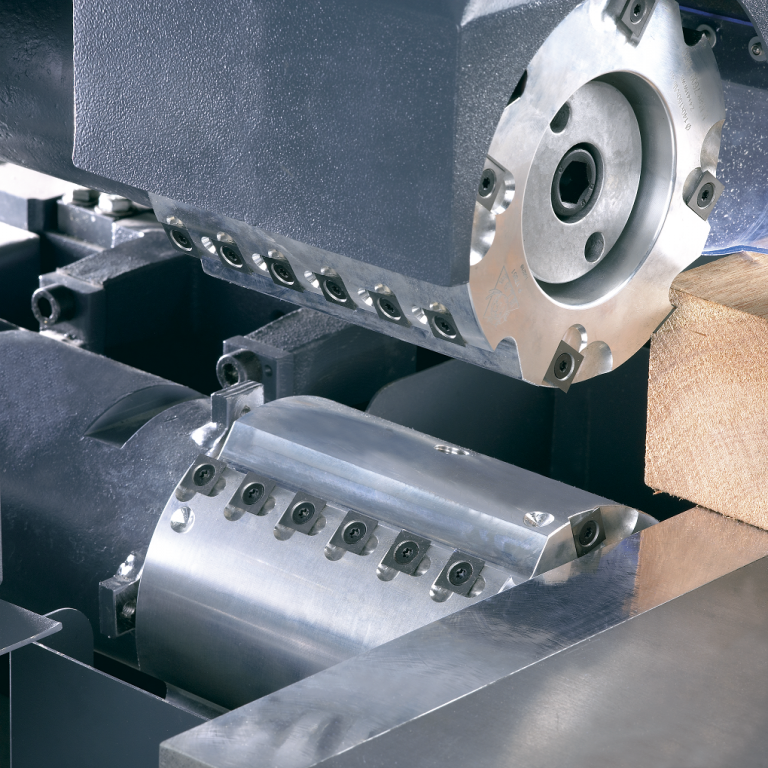

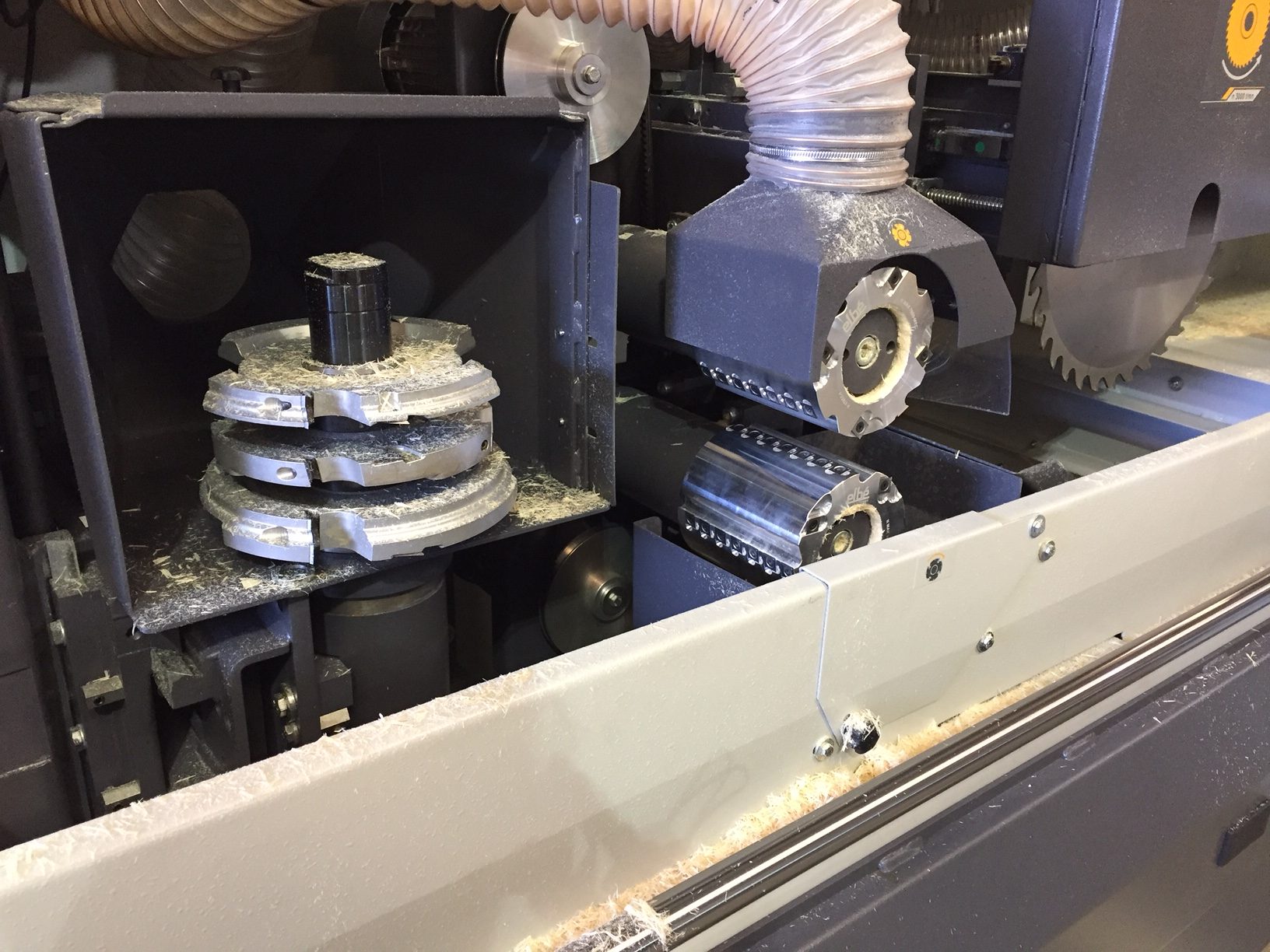

  • Spindle 300mm x 50mm 275mm travel 10hp tool stack system Saw unit
  • ‘For use with window systems with repetitive positions – no set up time, faster production’
