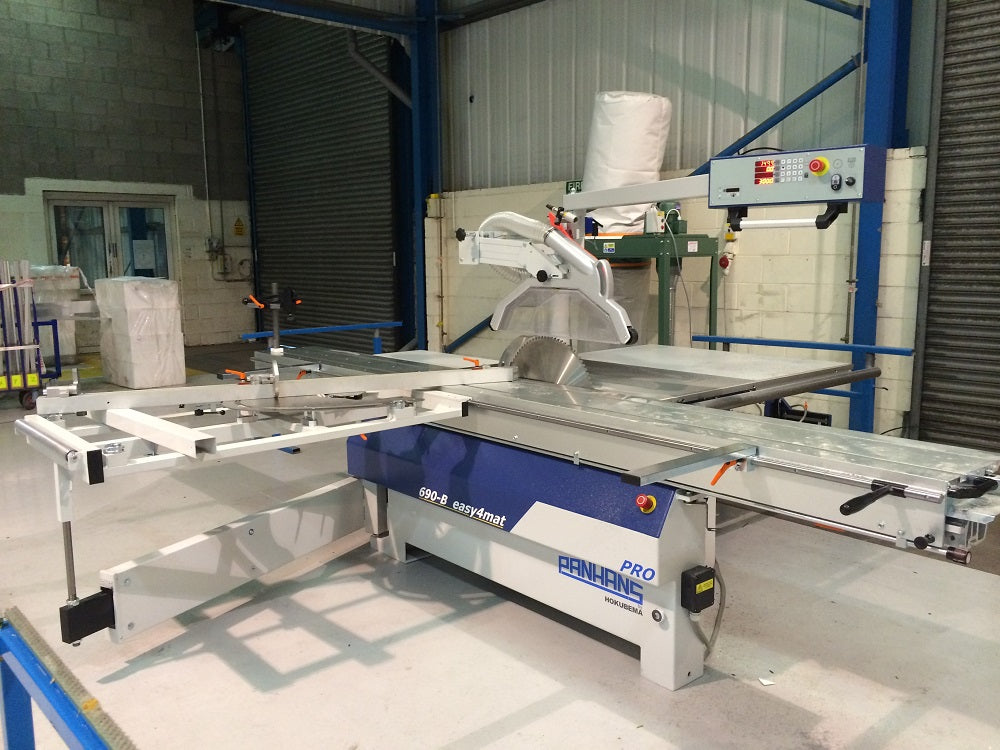

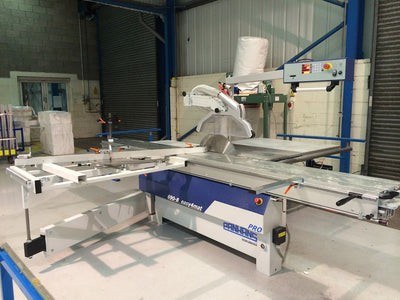

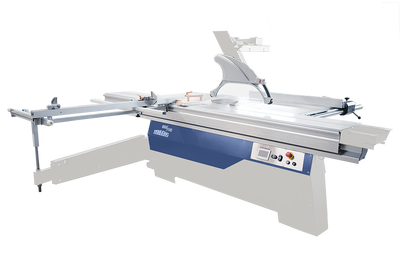

Panhans 690B Easy4mat PRO Sliding Table Panel Saw

Panhans 690B Easy4mat PRO Sliding Table Panel Saw

A strong high performance machine with quality in all the right areas. The machine is user friendly and virtually maintenance free.

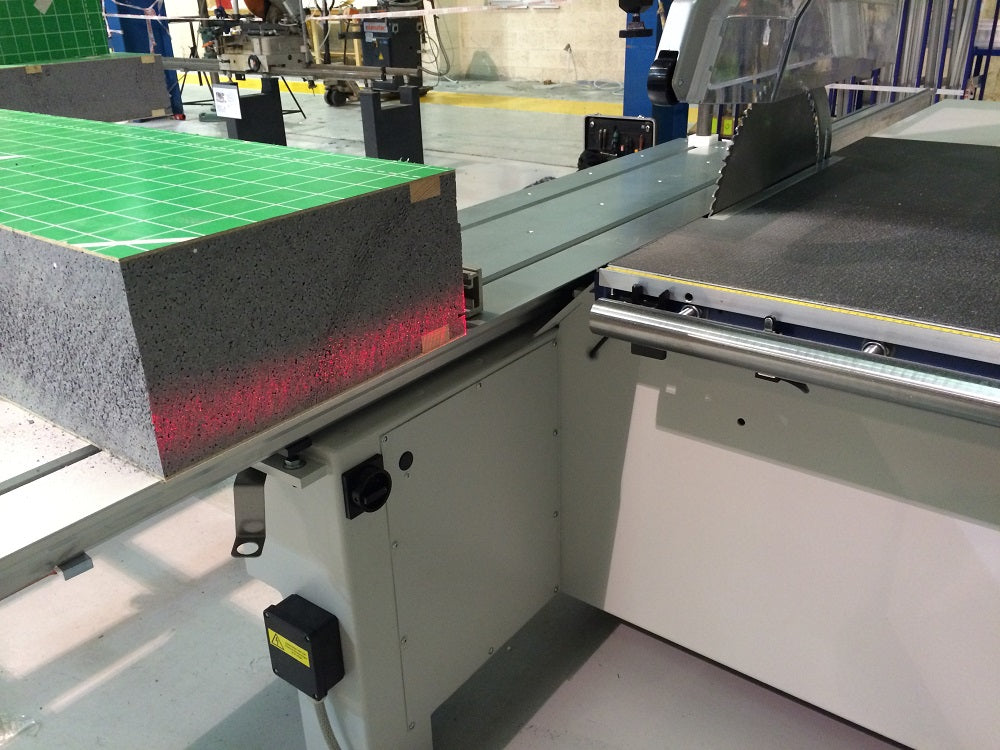

The sliding table features a tension free design with ground and hardened rails for optimum performance, unlike ‘ball bearing’ designs, the system is lubrication & tension free unaffected by dust and glides with ease.

PANHANS are designed and produced in Germany to very high standards. They are world renown for their innovation, reliability, build quality & longevity.

FINANCE OPTIONS
  • Please contact for details
GET A QUOTE

FEATURES:

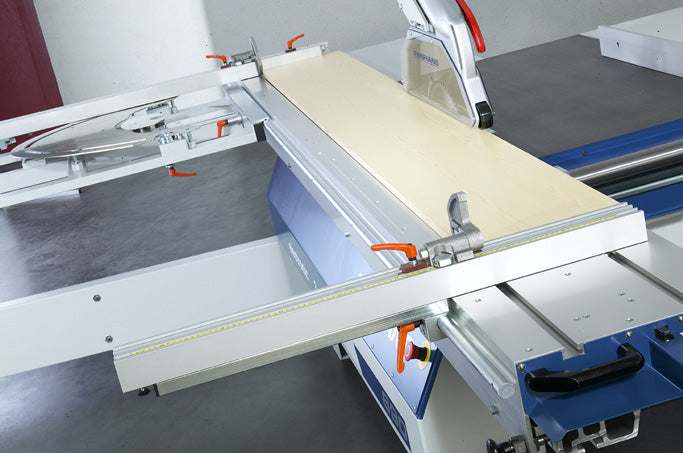

  • Super smooth sliding table rails
  • Cutting width 1250mm

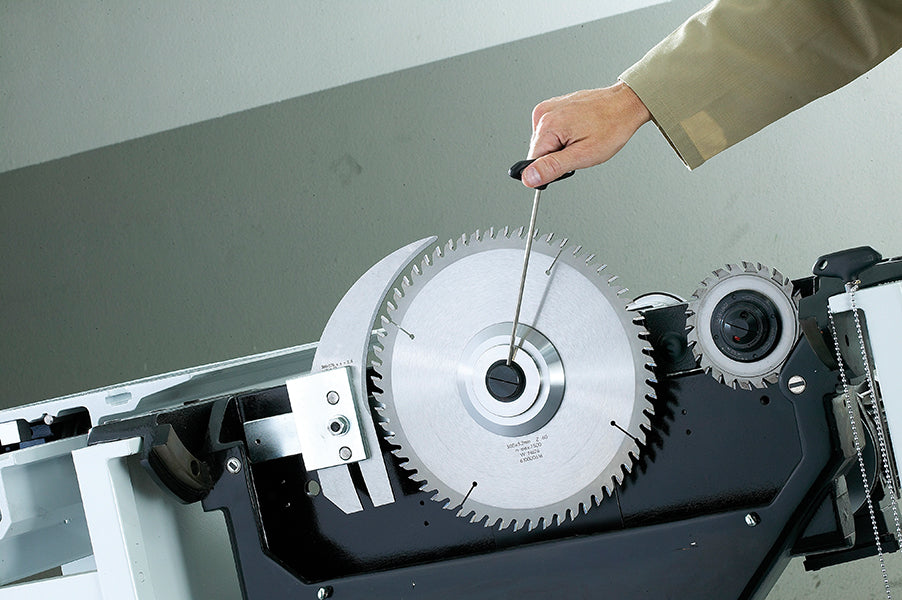

  • Quick blade clamping APA
  • Cutting length 3200mm

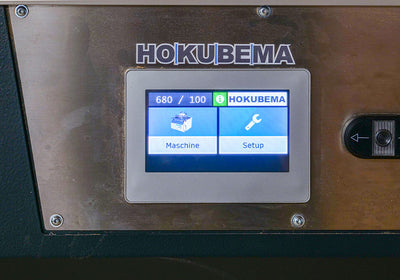

  • Display for cutting height cutting speed & angle

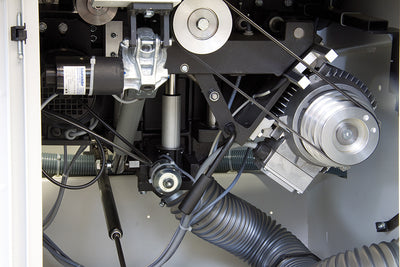

  • Powerful 7.5 Hp motor 3000/4000/5000/6000 rpm cutting speeds

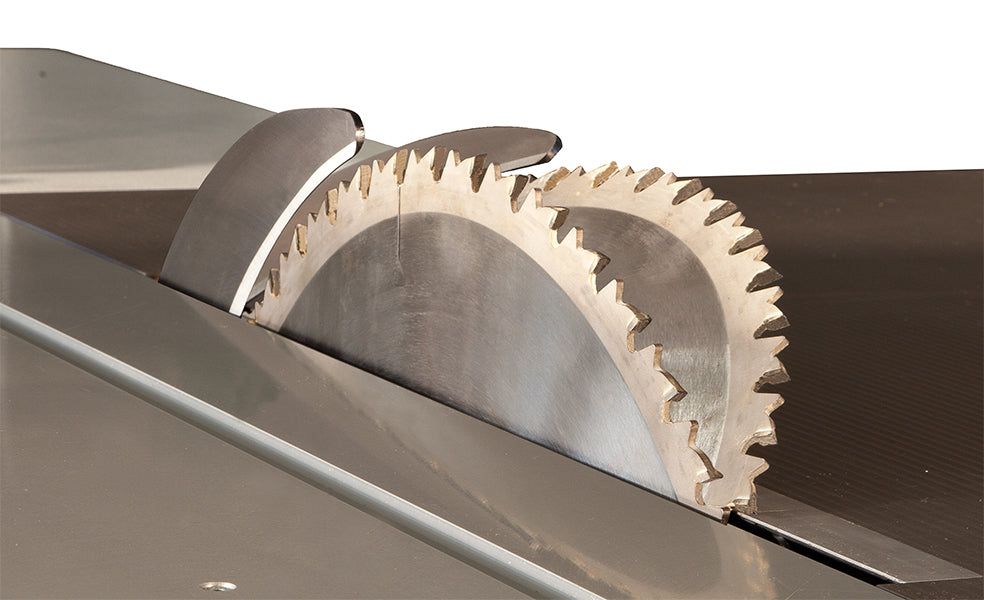

  • Max cutting height 145mm with 450mm saw ( option for 170mm & 195mm capacity)

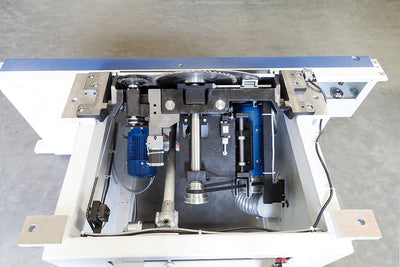

  • Electronic position control for rise/fall tilt
  • Tilting range 0 – 45 degrees

Accessories:

  • Cutting width 1500mm
  • Motorised rip fence control 1250mm / 1500mm
  • Simple mitre fence
  • Cutting length 1500mm, 2000mm, 2600mm, 3800mm
  • Swing away device for cross cut table
  • additional support

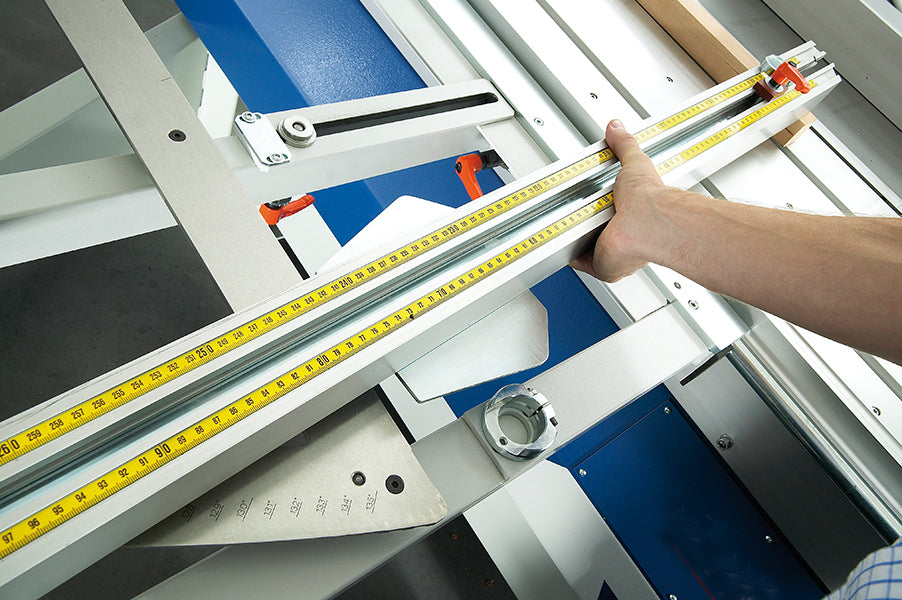

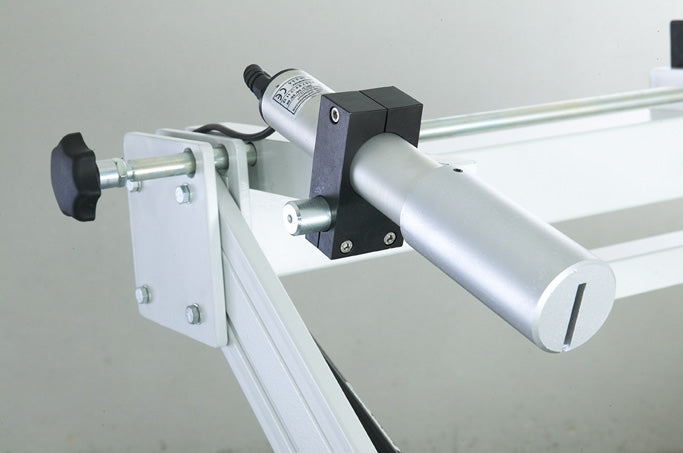

  • Digital display to Cross cut fence

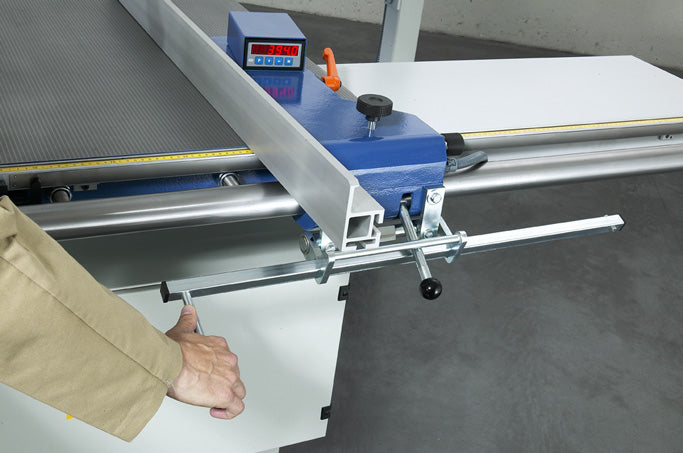

  • Digital display to rip fence

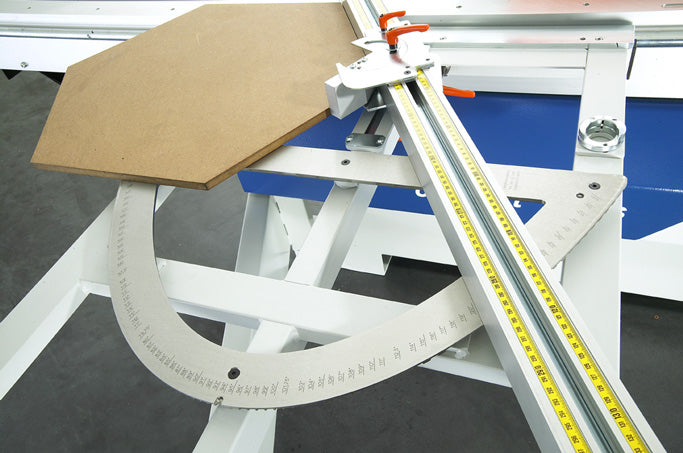

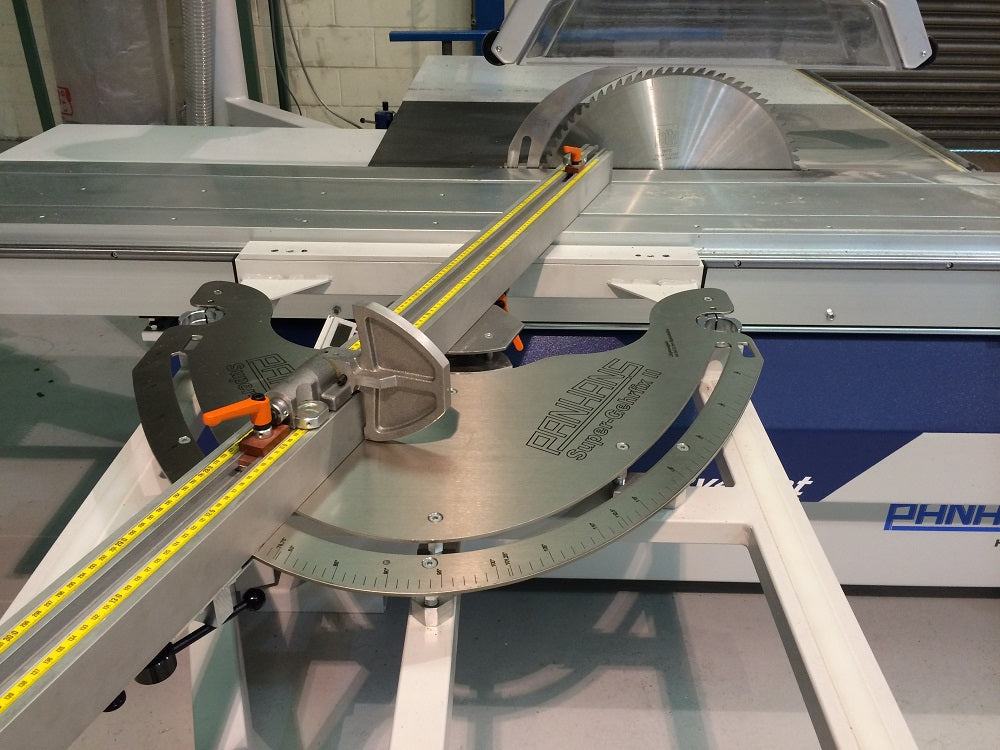

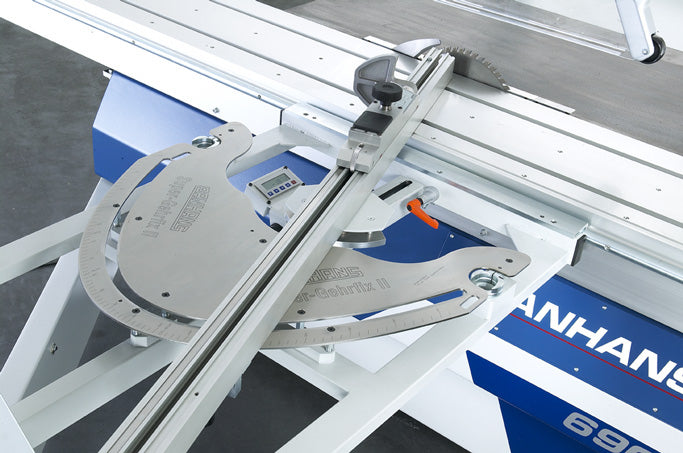

  • Super Gehrfix 2 – Mitre cross cut table with length compensation system digital version
  • Super Gehrfix 1 – Mitre cross cut table with length compensation system
  • Scoring saw – Manual control
  • Electronic scoring saw with Auto EPS parking system
  • Parallel fence
  • LASER sight line
  • Overhead control panel
  • Digital display to rip fence
  • R-4 remote operation of rip fence from operators side
  • Motor upgrade 10Hp
